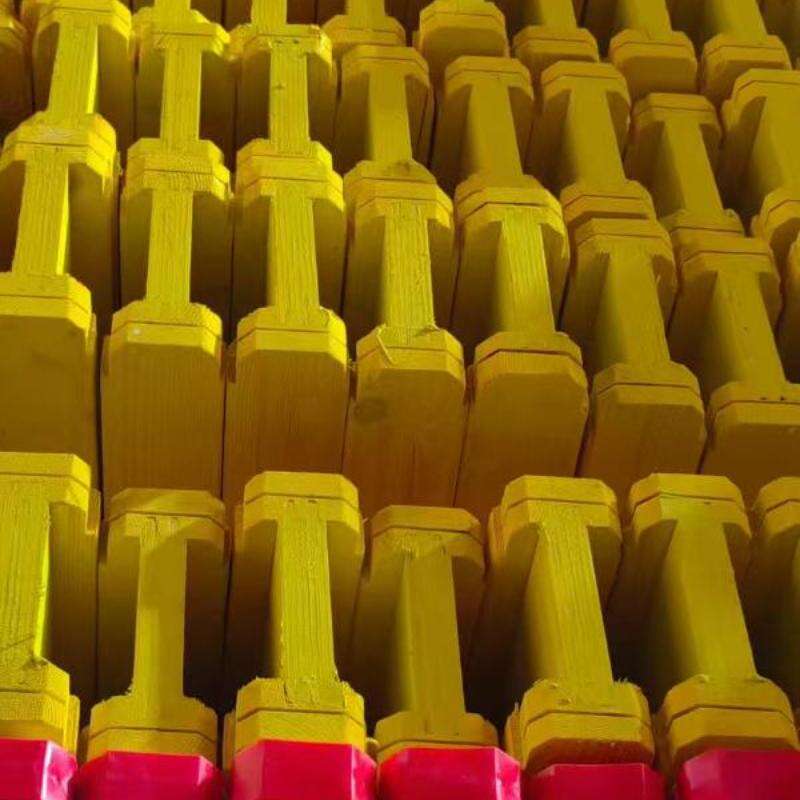

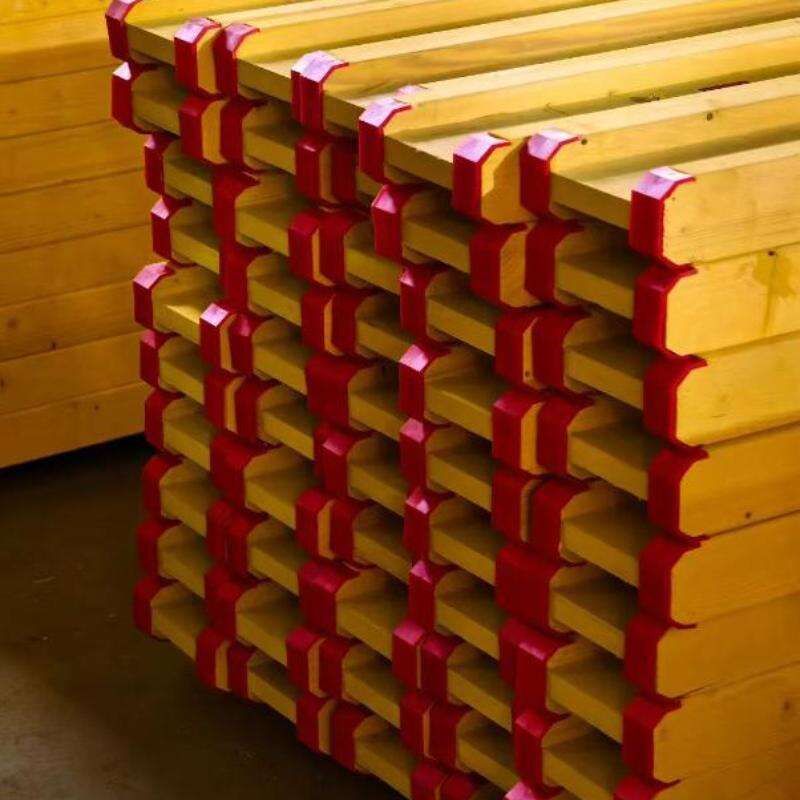

The H20 Timber Beam is an essential part of advanced formwork systems, widely utilized across the construction industry for its reliability. Designed for adaptability, our beams come equipped with standardized drilled holes at both ends. This feature allows for secure end-to-end connections, making it easy to lengthen the beam as needed. Additionally, we offer complete customization, producing H20 beams in any required length to fulfill the specific demands of your project.
1. Engineered for Strength & Reliability
The H20 Timber Beam serves as a robust backbone for formwork systems, offering superior load-bearing capacity and rigidity that is essential for modern concrete construction.
2. Modular Connectivity
Featuring standardized pre-drilled holes at both ends, the beam allows for secure end-to-end splicing. This modular design enables easy lengthening on-site, providing flexibility for spanning various distances.
3. Fully Customizable Dimensions
We prioritize project-specific requirements by offering beams in any custom length. Whether you need standard sizes or specialized dimensions, we can manufacture the exact specifications to fit your design needs.

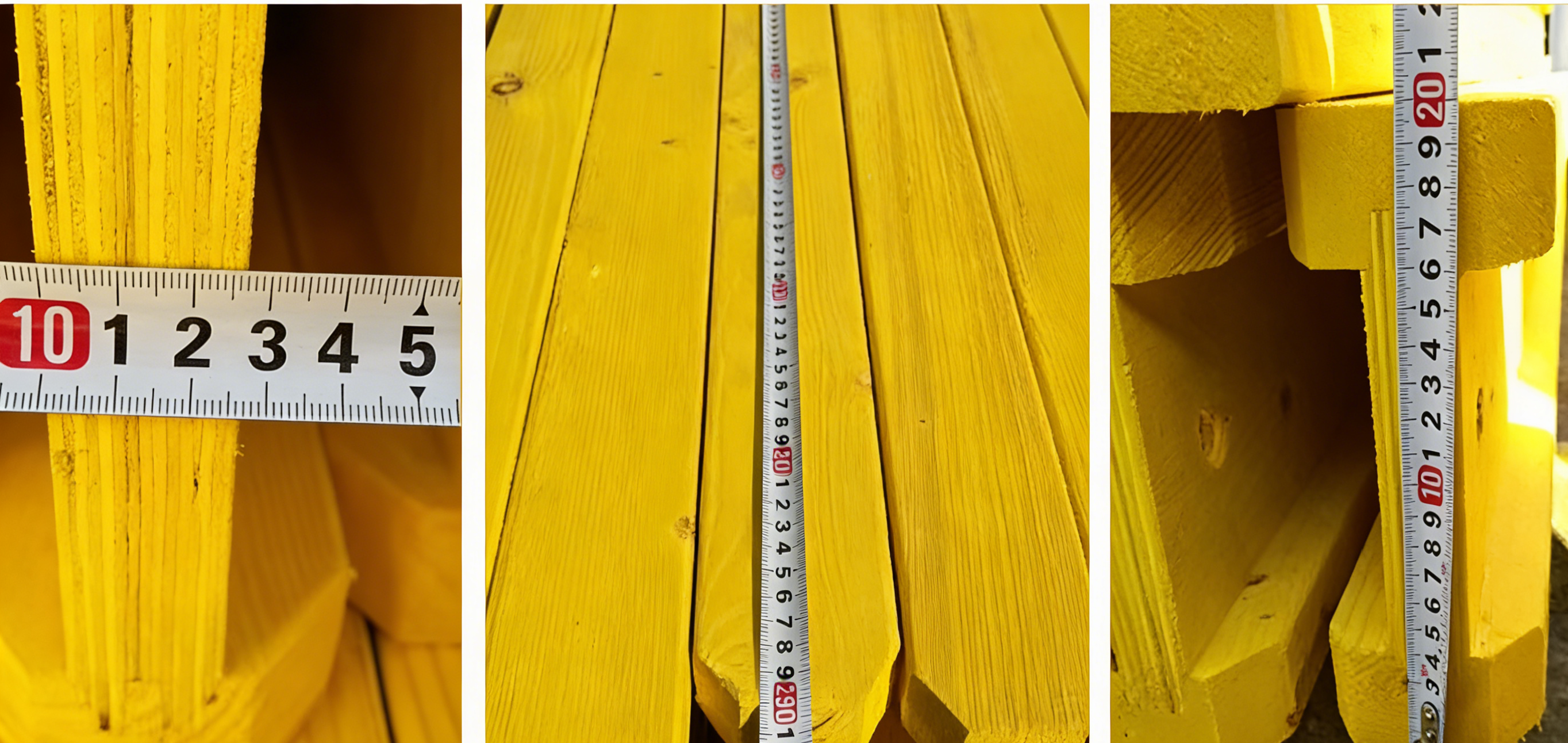

Quality is our top priority,We have established a rigorous quality control system with 15 professional QC teams overseeing the entire production process—from pre-production moisture content control, glue inspection, and material grade selection, to post-production pressing verification and thickness measurement. This comprehensive quality assurance ensures that every batch of our H20 Timber Beam meets the highest industry standards, providing reliable support for your construction projects.
| Product Name | Yellow H20 Timber Beam |
| Length | 1.8-5.9m (1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m) |
| Beam height | 200mm or as request |
| Chord height | 40 mm or as request |
| Chord width | 80 mm or as request |
| Core wood | Pine, Spruce Eucalyptus |
| Glue type | Phenolic,WBP |
| Edges | Waterproof painting |
| MOQ | 40'HQ Container |

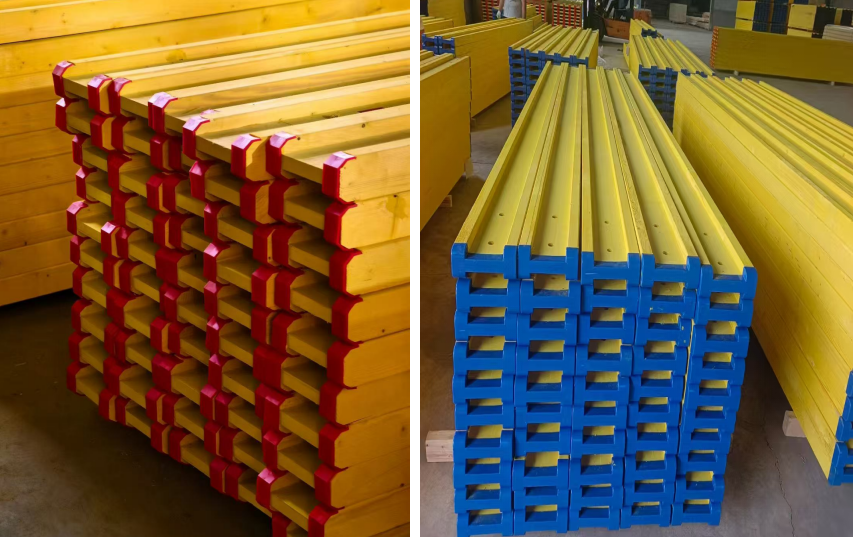

| Packing | Plastic bag packaging |
| Payment terms | TT or 100% irrevocable L/C at sight |
| Certification | ISO, CE, CARB, FSC etc. |

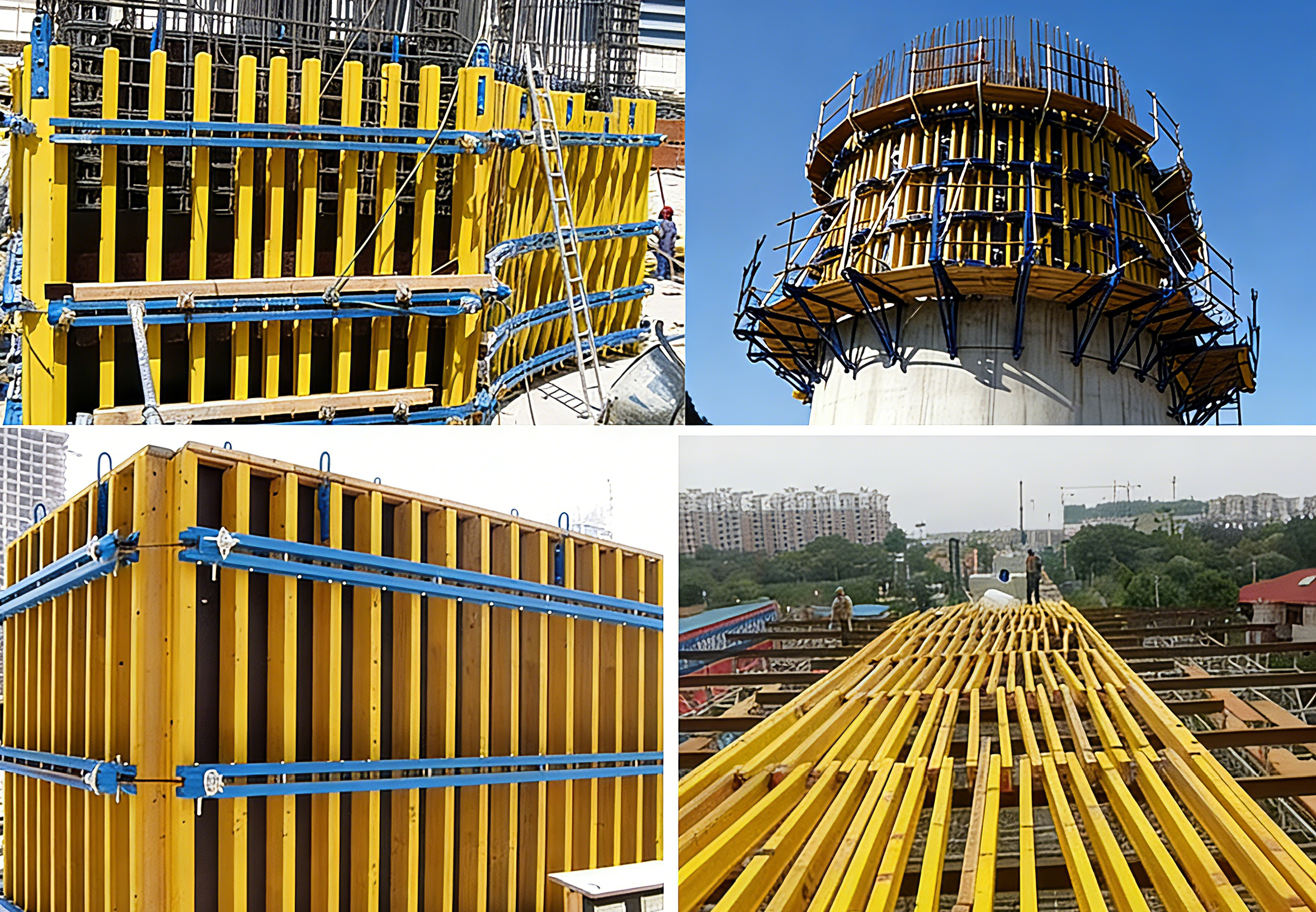

1. Slab Formwork (Table Forms & Slab Beams)
H20 beams are the primary load-bearing component for horizontal concrete slabs. They are typically used as primary or secondary bearers (main beams or cross beams) in slab formwork systems, supporting plywood and distributing the weight of the wet concrete to the props or shoring towers.
2. Wall & Column Formwork (Walers)
In vertical construction, H20 beams serve as walers (horizontal supports). They are mounted on the outside of wall formwork panels to clamp them together, ensuring the concrete walls remain straight and plumb while resisting the high pressure of the poured concrete.
3. Bridge & Heavy Civil Construction
Due to their high load-bearing capacity, H20 beams are extensively used in the construction of bridge decks, piers, and tunnels. They are ideal for heavy-duty applications where large spans and heavy loads are required.
Quick Response:
We have sales department and professional QC team,To respond to customer needs and control product quality
Rich experience:

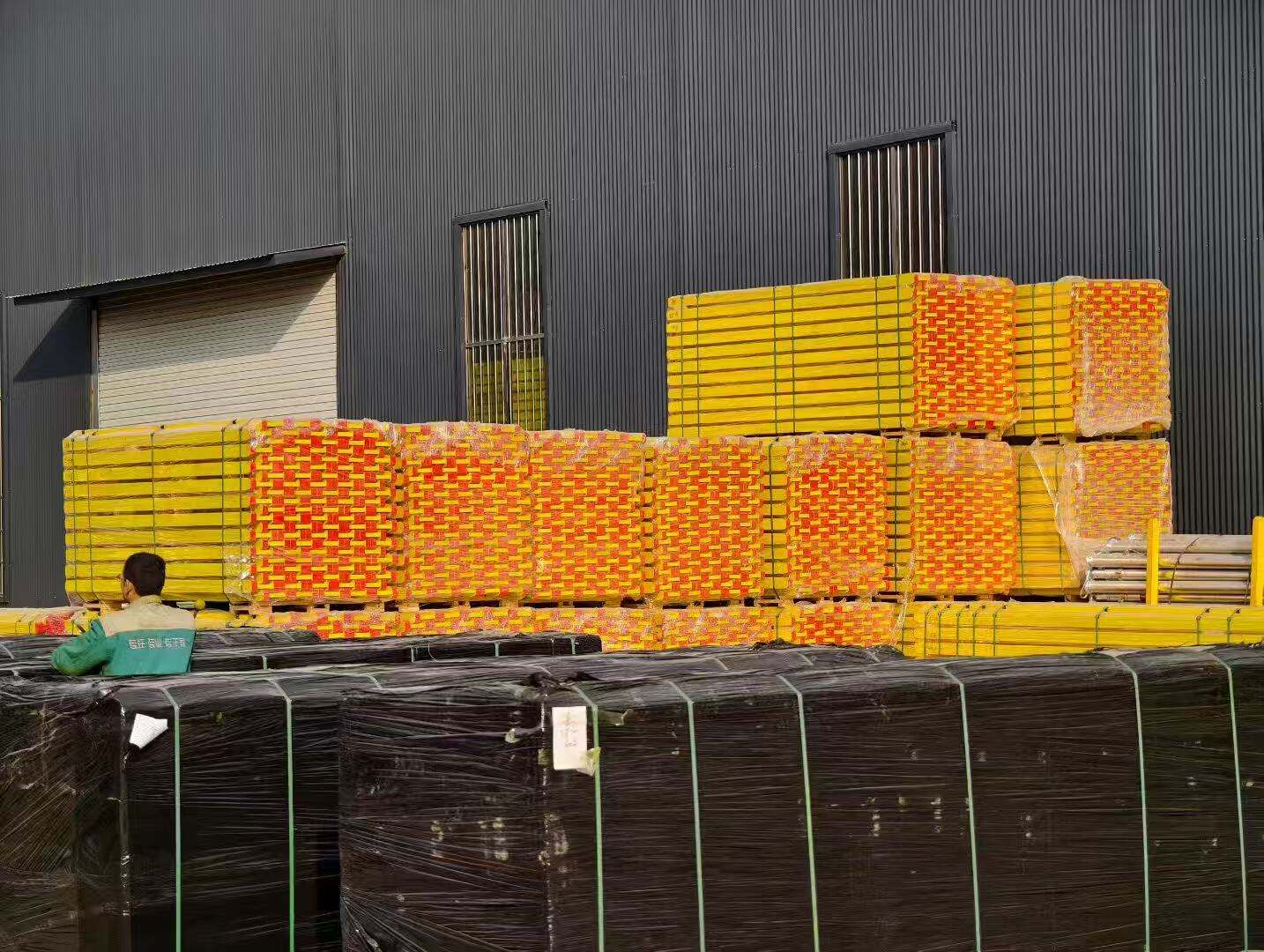

Over 200 containers,monthly production capacity,and we have export to 120+ countries and regions.
Delivery Time:
7~20 working days after payment, we will provide best speed and reasonable service.
Professional certification:
We have obtained CARB, SGS, FSC, ISO and CE and other international certificates for different market requirements.
1.Who are we?
We are Dinghaode Wood Industry ,Plywood factory based in China, start from 2004,have sell to Domestic Market(30.00%),Southeast Asia(30.00%),Middle East (20.00%),South America(10.00%),North America(10.00%)Market etc;
2. What are your advantages?
We operate a self-owned overseas warehouse in Saudi Arabia, with a stock of over 80–100 containers monthly, ensuring timely delivery for local customers.
3. How can we guarantee quality?
Always a pre-production sample before order production;and We have QC team to do final Inspection before shipment;
4.What can you buy from us?
H20 timber,3-ply Yellow board,Scaffold Plank ,Shuttering plywood.
5.Why should you buy from us not from others?

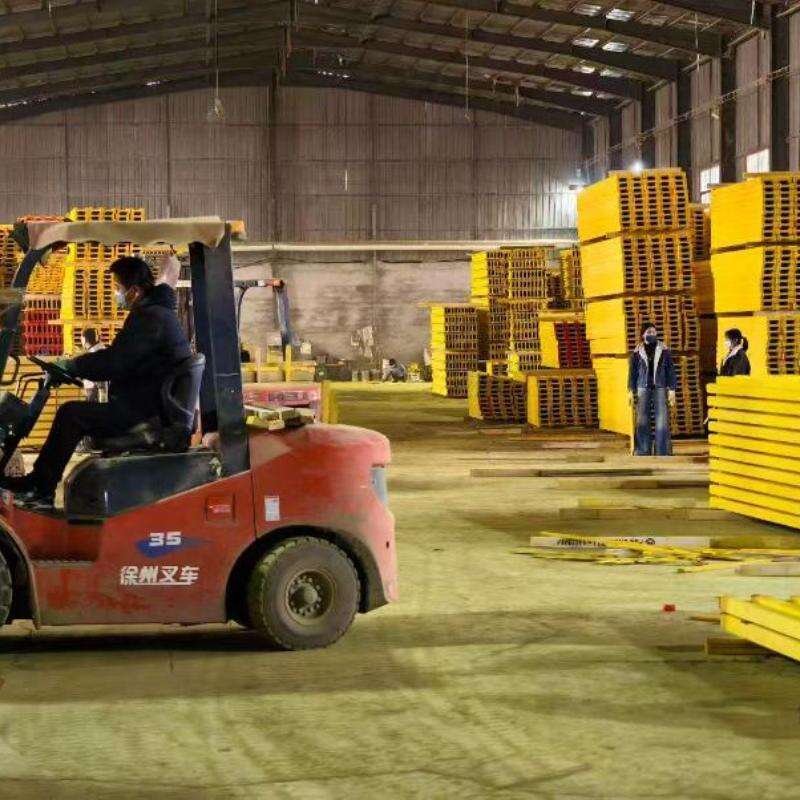

Dinghaode Wood the factory covers an area of 125,300 square meters, over 50 production line,and has over 500 high-skill employees. We have sufficient production capacity to fulfill the material needs of major construction projects, while our premium quality supports competitive pricing for distributors.
6.What services can we provide?
Size customization upon request;
Personalized packaging with your logo is available upon request;
Online technical support;
7.What’s the payment term ?
Accepted Delivery Terms: EXW,FOB;CIF
Accepted Payment Currency: USD,RMB(Oversea)
Accepted Payment Type: T/T, L/C,PayPal,Western Union, MoneyGram,Cash.
Language Spoken: English,Arabic,Chinese,Spanish, French etc.
