Our 3-Ply Shuttering Panels represent the perfect balance of strength and flexibility. Composed of three layers of premium plywood (9mm total thickness), they are constructed using an advanced cross-laminated technique. By orienting the grain of the outer plies perpendicular to the inner core, we maximize stability. The panels are bonded with industrial-grade adhesives under high temperature and pressure to ensure a permanent, void-free bond. Additionally, our rigorous drying process guarantees a moisture content of less than 13%, ensuring the panels remain flat, strong, and reliable for repeated use on the job site.
The 3-ply shuttering panels are the classic plates for form-work in the construction.
Their name comes form the structure - three layers, each one perpendicular to the other. panels are produced by coniferous wood. Panel size is fixed at 500 mm, standard length is 3000 mm. The thickness vould be 21 or 27 mm.

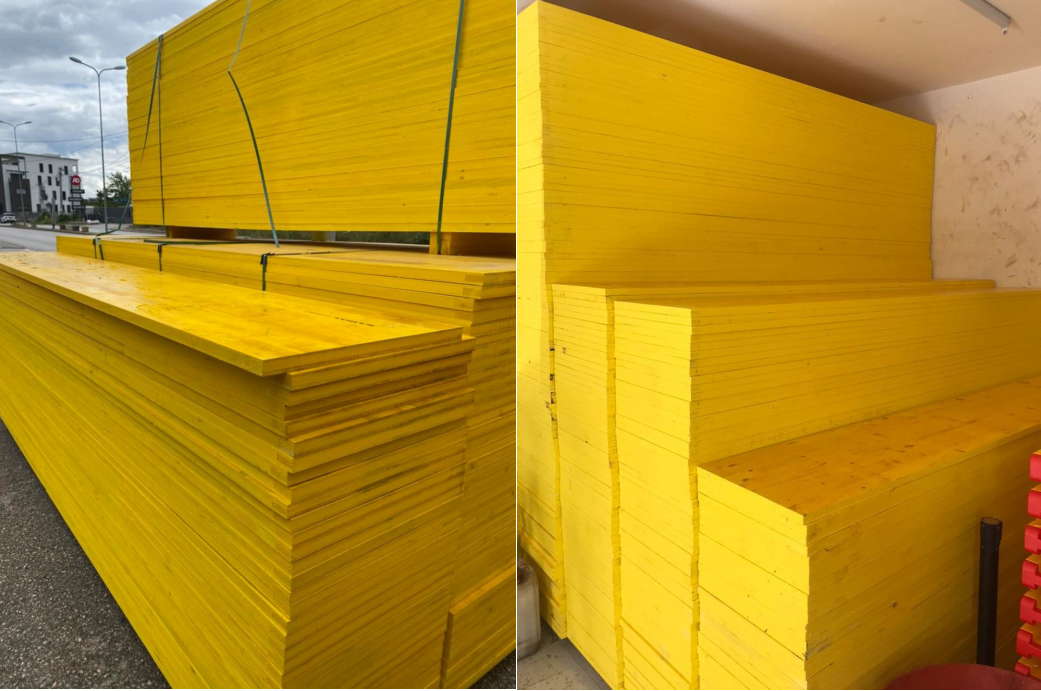

The three-ply shuttering panels could be easily distinguished on the construction site due to their yellow colour of the top water repellent paint.

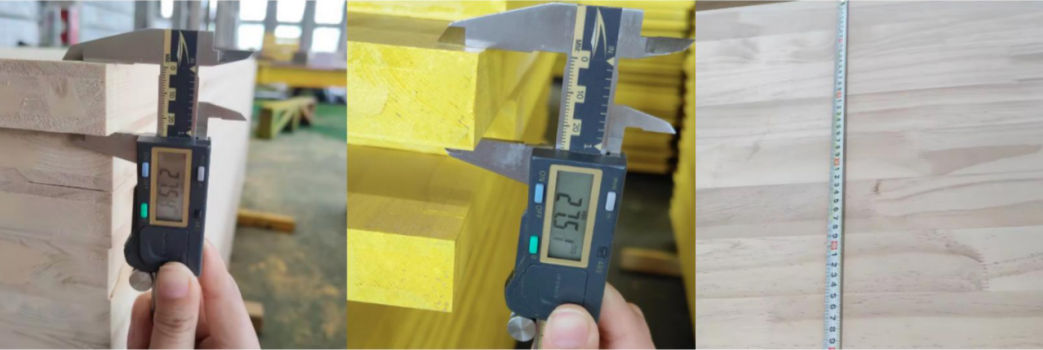

Quality is our priority. We have 15 professional QC teams overseeing the entire production process—from pre-production moisture control, glue inspection and material grading, to post-production pressing and thickness checks. Every batch meets strict industry standards, providing reliable support for your projects.
| Product Name | 3-Ply Yellow Shuttering Panel |
| Size | 500*2000/2500/3000mm. |
| Thiceness | 21mm/27mm |
| Wood | Pine, spruce |
| Glue | Melamine/ phenolic |
| Density | 460~500kgs/cbm |
| Usage | Construction, fence, stages..... |
| Packing | Pallet packing |
| MOQ | 1*40'HQ |
| Payment terms | TT or 100% irrevocable L/C at sight |
| Certification | ISO, CE, CARB, FSC etc. |
Here is a concise summary of the main application scenarios for 3-Ply Yellow Shuttering Panels(often known as "3-Ply Yellow Boards"), written in professional English suitable for sales or technical descriptions:
1. Columns & Pillars Formwork These panels are the industry standard for casting square and rectangular concrete columns. Their high stiffness and smooth phenolic surface ensure the concrete structure remains perfectly straight and dimensionally accurate.
2. Walls & Shear Walls Ideal for vertical wall construction, including lift shafts and staircases. The "3-ply" structure provides excellent resistance to the high lateral pressure of wet concrete, preventing blowouts.
3. Special & Curved Structures Due to their flexibility (thinner profile compared to standard 18mm plywood), they are frequently used for curved walls, circular tanks, and tunnels** where bending the formwork to a specific radius is required.

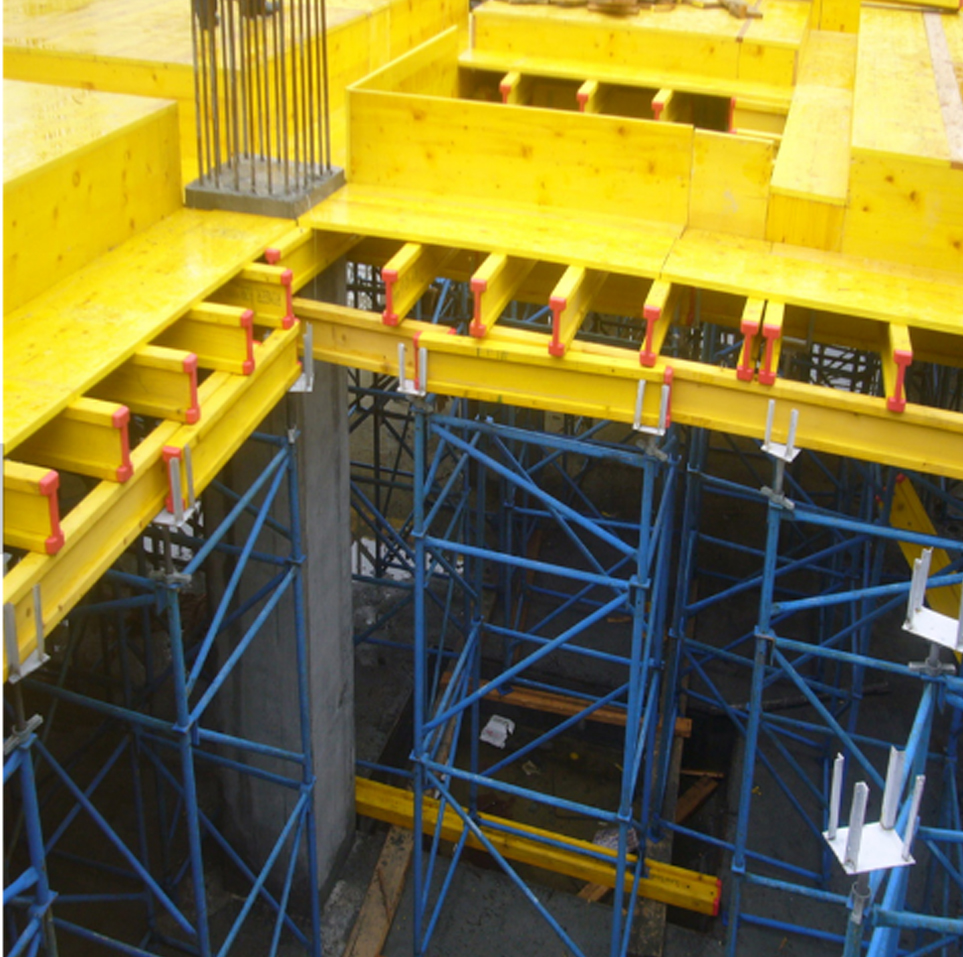

4. Soffits & Light Slabs While primarily used for vertical work, they are also suitable for soffits (undersides of slabs)** and light-duty flooring applications, often used as a durable backing board or in temporary structures.
Quick Response:
We have sales department and professional QC team,To respond to customer needs and control product quality
Rich experience:
Over 200 containers,monthly production capacity,and we have export to 120+ countries and regions.
Delivery Time:
5~12 working days after payment, we will provide best speed and reasonable service.
Professional certification:
We have obtained CARB, SGS, FSC, ISO and CE and other international certificates for different market requirements.
1.Who are we?
We are Dinghaode Wood Industry ,Plywood factory based in China, start from 2004,have sell to Domestic Market(30.00%),Southeast Asia(30.00%),Middle East (20.00%),South America(10.00%),North America(10.00%)Market etc;
2. What are your advantages?
We operate a self-operated overseas warehouse in Thailand, with 40–60+ containers in stock, balancing ocean freight costs to offer reasonably priced products.
Also run a self-owned overseas warehouse in Saudi Arabia, with a stock of several shuttering plywood product, ensuring timely delivery for local customers.
3. How can we guarantee quality?
Always a pre-production sample before order production;and We have QC team to do final Inspection before shipment;
4.What can you buy from us?
H20 timber,3-ply Yellow board,Scaffold Plank ,Shuttering plywood.
5.Why should you buy from us not from others?
Dinghaode Wood the factory covers an area of 125,300 square meters, over 50 production line,and has over 500 high-skill employees. We have sufficient production capacity to fulfill the material needs of major construction projects, while our premium quality supports competitive pricing for distributors.
6.What services can we provide?
Personalized packaging with your logo is available upon request;
Online technical support;
7.What’s the payment term ?
Accepted Delivery Terms: EXW,FOB;CIF
Accepted Payment Currency: USD,RMB(Oversea)
Accepted Payment Type: T/T, L/C,PayPal,Cash.
Language Spoken: English,Arabic Chinese,etc.
